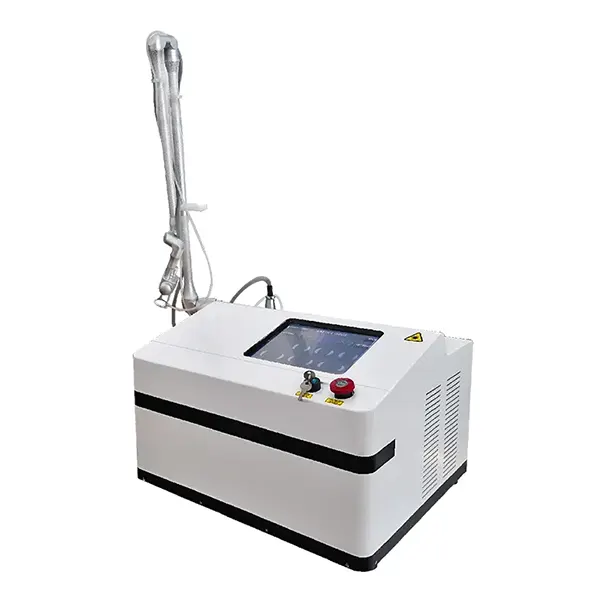

Portable Fractional Co2 Laser Therapy Machine

Portable Fractional Co2 Laser Therapy Machine

Feature: Blood Vessels Removal, Anti-Puffiness, Pore Remover, Face Lift, Pigmentation Correctors, Skin Tightening, Whitening, Skin Rejuvenation, Dark Circles, Wrinkle Remover, Acne Treatment, Scar Removal
Style: portable
LCD screen: 10.4 inch LCD real color touch screen
Light conducting system: 7 jointed arms to conduct light
Scan pattern size: 0.1x0.1mm-20x20mm
Radiation time / Interval time: 0.01 1 s
Power supply: 110/220V+10% 60HZ
After-sales Service Provided: Free spare parts, Online support, Video technical support

Share to:

$fractional co2 laser detail 1.webp$

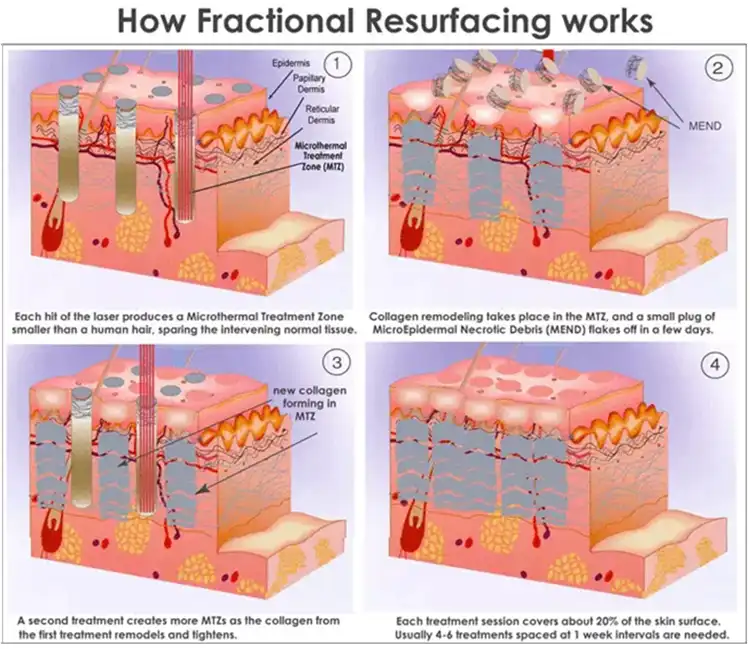

Working Principle

CO2 fractional laser effect principle is "focal photothermal effect ". Skin tissue has ability to repair itself. The skin was
injury by trauma, but it could heal itself. The wound area is too large, the results of repair of scar formation. The wound is
small, the skin can completely recover. Fractional laser every effect to skin only on one of the small region to generate thermal stimulation, retaining portion of skin is not affected, the role of tissue to the skin to stimulate collagen receipt hyperplasia, and no effect of skin tissue can be used as thermal diffusion region, avoid the possibility of thermal injury and other side effects, and can quickly promote skin healing, reach, and improve scars, skin firming pores purpose.

$fractional co2 laser detail 2.webp$

$fractional co2 laser detail 3.webp$

Treatment or Application

Clinical Applications
RF CO2 laser possesses the functions of cutting and grinding skin, vaporizing tissues, stopping bleeding, fusion, ablation and sterilization, etc. It promotes the quick healing and reconstruction of skin, remodeling and regeneration of collagen. Fractional

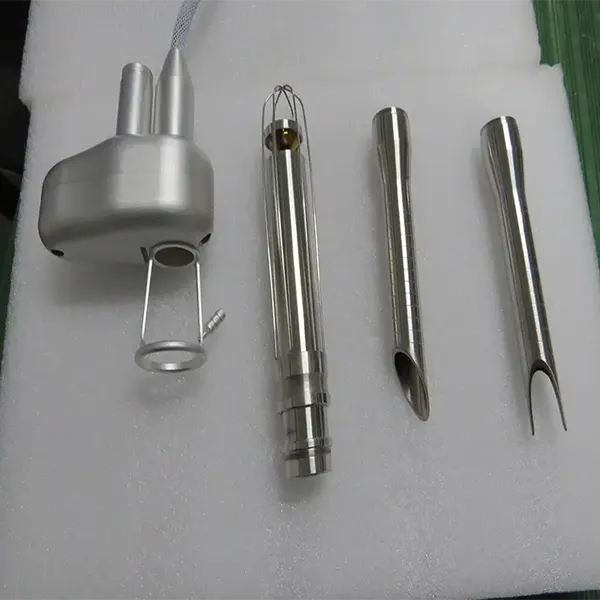

laser equipment possesses multi-heads. Customers can change the treatment heads to produce multiple uses.
1.Laser resurfacing surgery
2.Laser wrinkle removal surgery
3.Laser scar removal surgery
4.Laser blepharoplasty
5.Other applications: Removal of pimented naevus, chloasmas, freckles, age pigments, warts, seborrheic keratosis, syringoma, acnes, milia, striae gravidarum; Pore shrinkage; Skin tightening; Laser hairtransplant; Laser breast augmentation; Skin neoplasm, and etc.

Technical parameters

LCD screen	10.4 inch LCD real color touch screen
Light conducting system	7 jointed arms to conduct light
Wavelength	10.6µm
Pulsed Radiofrequency	0.530W
Power	40W
MODE	Normal(pulse, super pulse) / Scan(super pulse, ultra pulse)
Laser energy	1-40W / 5-45mj
Step value	1W / 5mj
Figure option	Square \| Round \| Ellipse \| Rectangle
Scan pattern size	0.1x0.1mm—20x20mm
Scan Mode	free scan; Sequence scan; maximum distance scan
Dot quantity	400 dots at most
Pulse duration	0.1-10ms
Spot distance	0.1-2mm
Pulse energy	1mj to 100mj is optional for each dot.
Cooling system	Water cooling, air cooling and semiconductor refrigeration
Laser apparatus	Sealed off laser device stimulated by direct current
Condenser focus	f=50mm
Spot size	≥0.2mm at the focus
Radiation time / Interval time	0.01 1 s
Aiming beam	635nm infrared ray
Power supply	110/220V+10% 60HZ 6A
Weight	50kg

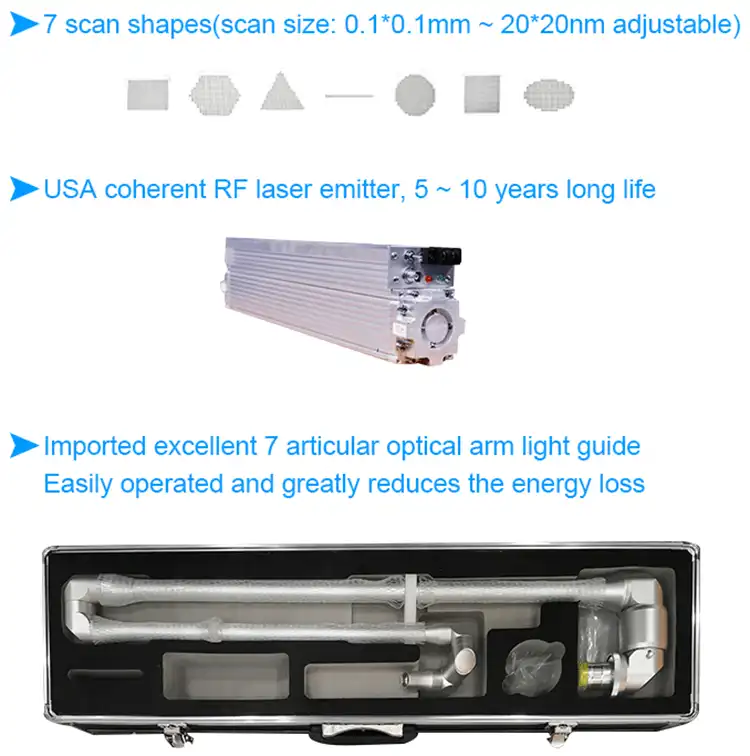

Our Advantages

$fractional co2 laser detail 4.webp$

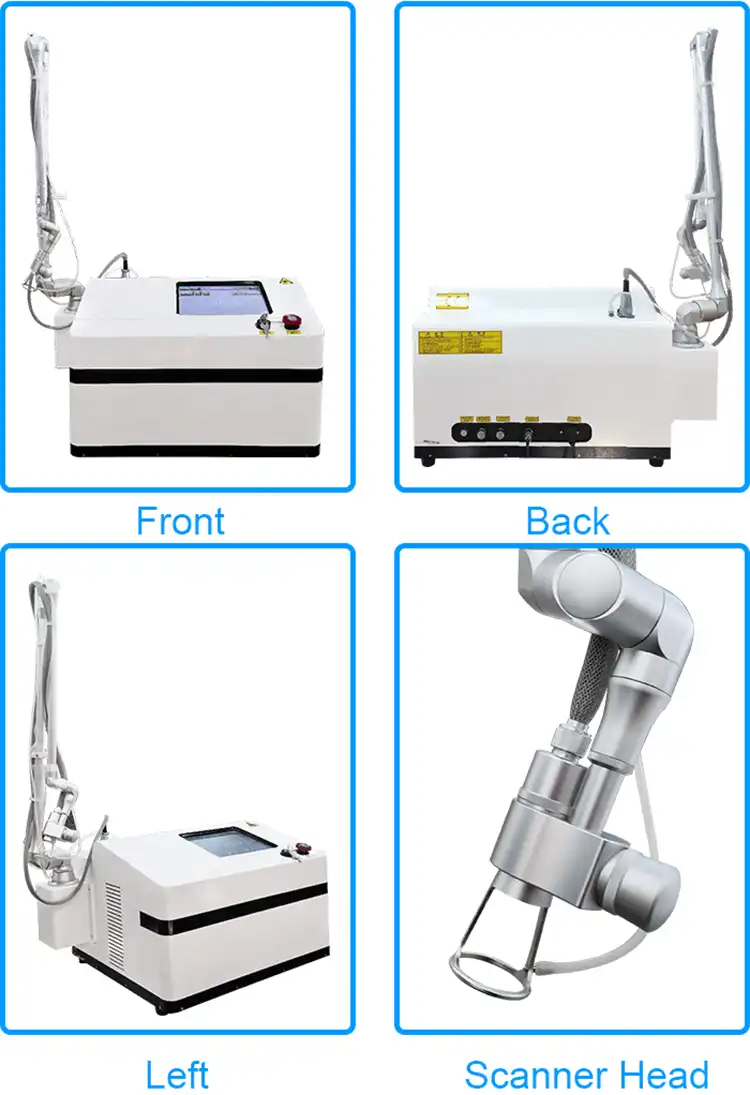

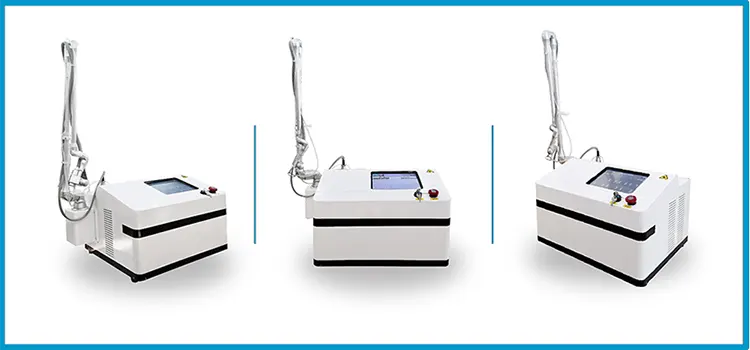

Details Images

$fractional co2 laser detail 5.webp$
